SIMUCUBE 2 ULTIMATE DIRECT DRIVE SIMULATOR STEERING SYSTEM
SIMUCUBE Ultimate

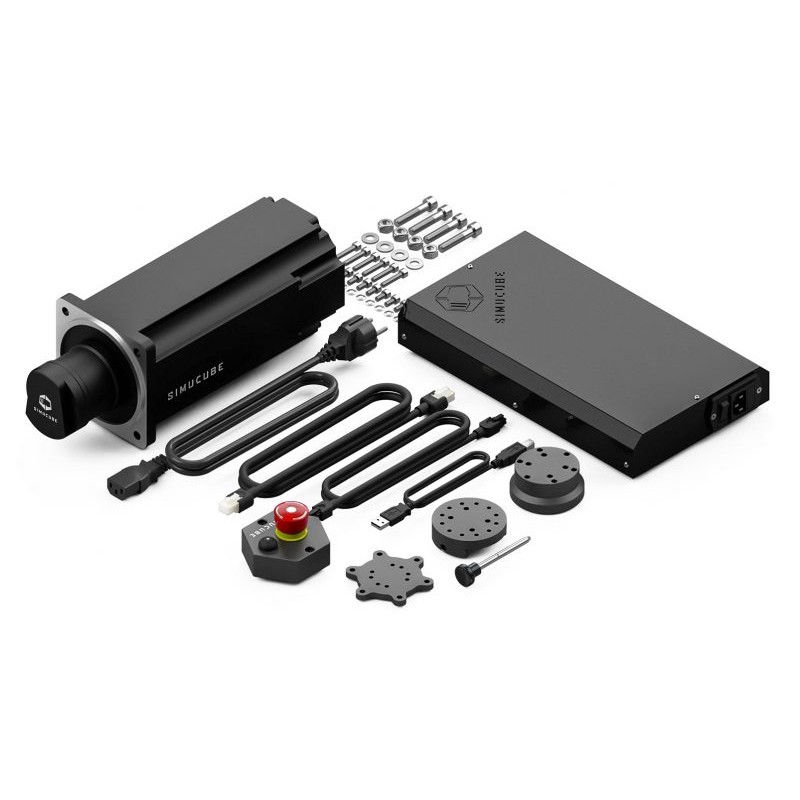

Abundant 32 Nm of torque and maxed-out torque response rate is at your disposal at anytime. Ultimate is based on Austrian made maximally dynamic industrial motor optimized for simulation. It's equipped with a 24 bit resolution Hiperface angle sensor to be fully utilized by the most advanced signal processing unit seen in simulators. Included:- SC2 Ultimate wheel base
- Power supply with EU PSU cable
- Cables
- Stop button + quick release
Ultimate exclusively comes with advanced fine tunable signal processing to make the experience as personalised as humanly possible. This model was designed with "only the best is good enough" mindset.
Simucube 2 Ultimate is our tribute to the Ultimate drivers.
Technicial Specifications
Simucube Wireless Wheel™ support – Yes
Simucube Quick Release™ – Yes
Torque reconstruction processing – Yes
Static force reduction – Yes
Natural damping, inertia and friction filters – Yes
Ultra low latency mode – Yes
Adjustable torque slew rate limit – Yes
Non-linear force saturation – Yes
Super Fine tuning filters — Yes
Factory Calibration – Unique multi torque cogging + ripple (certificate included)
Max torque – 32 Nm
Max torque slew rate – 9.2 Nm/ms
Angle sensor resolution – 24 bit
Torque Off button – Premium
Power supply – 1000 W
Physical size – 115 x 115 x 310 mm
Fixing holes – 9mm dia x 4 pcs. through hole
Screw bolt pattern dia – 130 mm
Flange centering hole dia – 110 mm
